Construction Bimetallic Wear Parts

Construction bimetallic wear parts were originally created for the Australian mining and quarrying industries in 1967. Today the DOMITE range of products is manufactured and distributed to worldwide markets. The abrasive hardness (over 700BHN) of working surface bring it to the tough working condition.

Over the years MGS Casting has developed into a range of over 3,000 different shapes and sizes. Applications for Sinco bi-metal/domite products are wide and varied, ranging from specific wear protection on buckets for loaders, excavators and draglines machines, or for weld-on hammer tips for the recycling industry, or chute linings and rock box edges.

Bimetallic wear products deliver the ultimate protection against high abrasion in some of the harshest conditions. With a variety of shapes and sizes, these products are easily installed to most high wear areas resulting in reduced maintenance and downtime. Extends the life of your excavator, shovel, wheel loader bucket or crusher liner. Protection can also be customized for other mobile and static equipment. Hensley’s bimetallic wear products are a combination of high chromium white iron metallurgically bonded to a mild steel backing plate. The white iron has a minimum hardness of 700 Brinell providing incredible abrasion resistance protection to your equipment. The mild steel backer plate is easily weldable with minimal preparation.

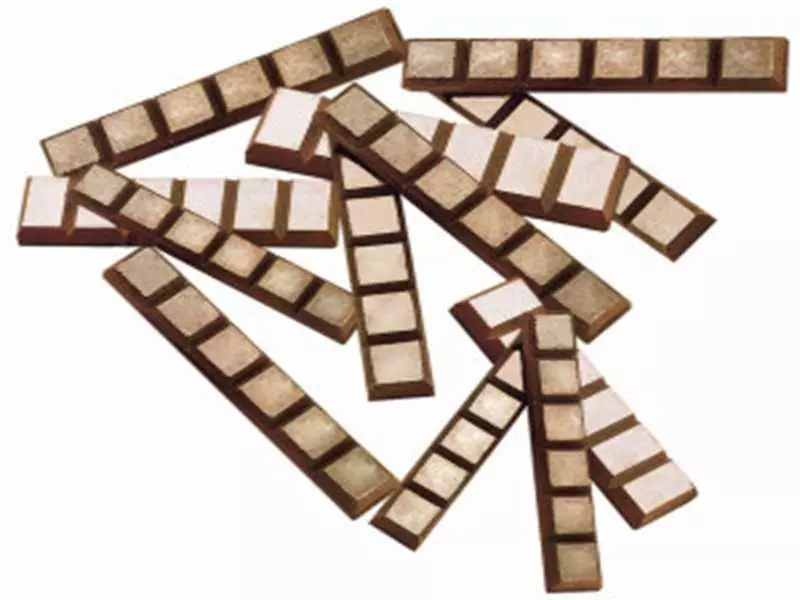

Chocky Bars

  • Easy to cut for customized protection
  • Easy to bend for protecting contoured surfaces
  • Available in 6 sizes
Chocky Bars

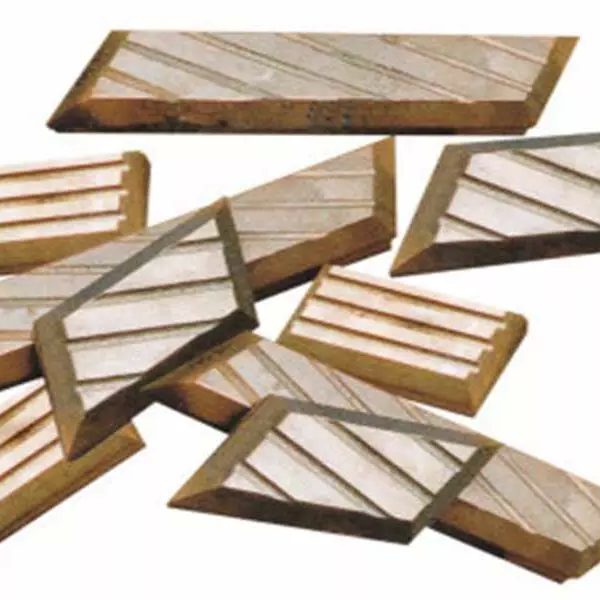

Skid Bars

  • Ideal for bucket bottom protection
  • Trapezoidal shape for spade bucket lips
  • 3 standard sizes in rectangular and trapezoidal shapes
Skid Bars

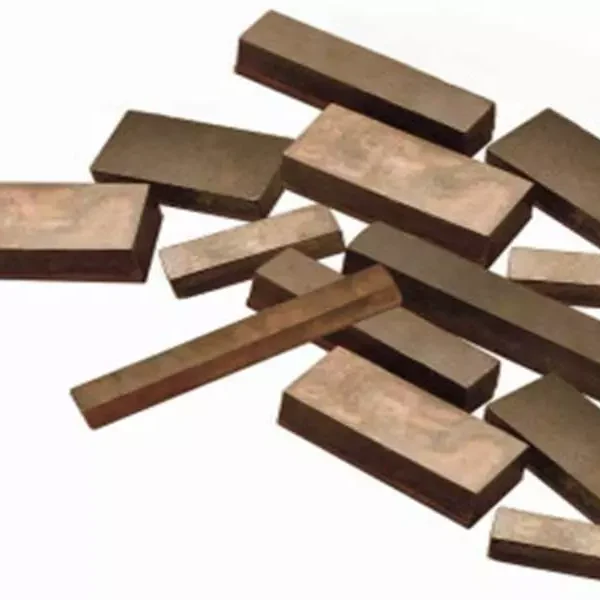

Wear Bars

  • Available in multiple sizes and shapes
  • Can be used to create “rock box” or “dirt on dirt” protection
Wear Bars

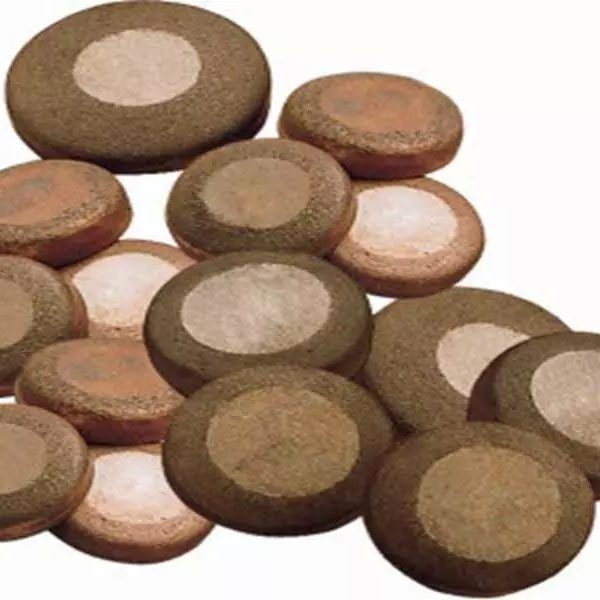

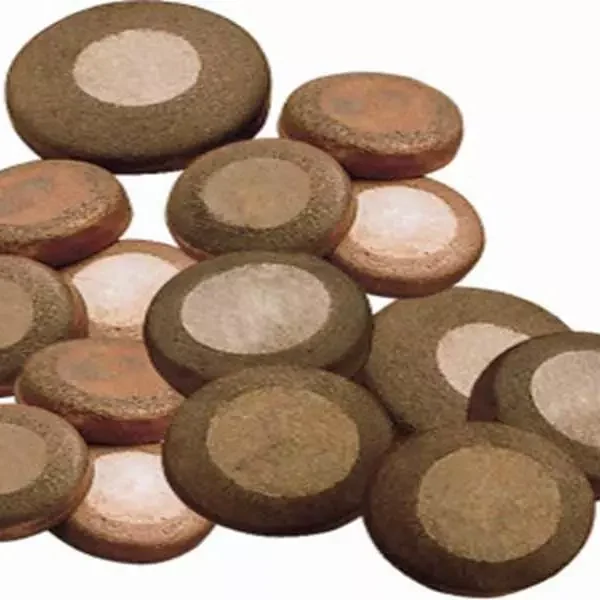

Wear Buttons

  • Ideal for smaller areas requiring wear resistant material
  • Requires less welding time and material
  • 5 sizes from 60mm to 150mm in diameter
Wear Buttons

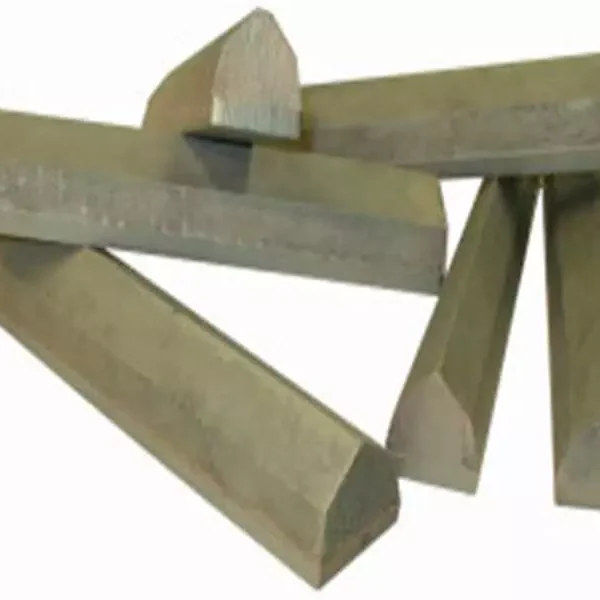

Grizzly Bars

  • Standard sizes minimize customer cost versus custom shapes
  • Peaked profile offers longer wear life and greater material deflection
Grizzly Bars

Stocked Products

Bimetallic products (1)
Bimetallic products (2)
Bimetallic products (3)
Bimetallic products (4)
Bimetallic products (6)
Bimetallic products (5)
